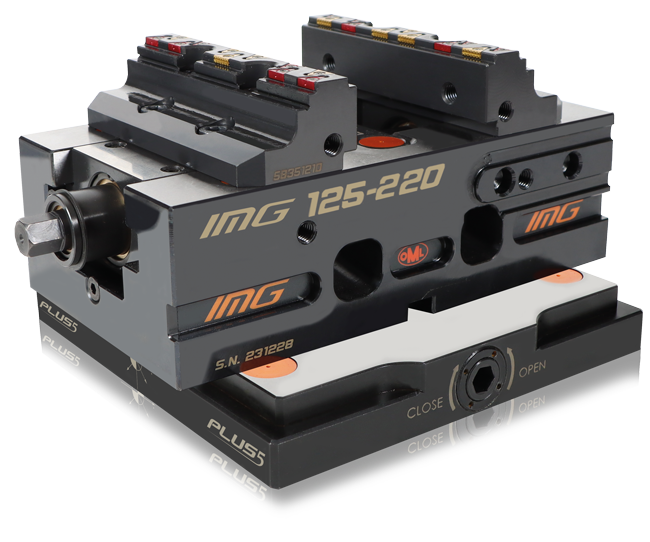

PLUS 5
Mechanical Zero Point system

The symbol on the side represents the vectorial force transmission system that acts by binding the pins uniformly and in all directions.

BENEFITS

  • Locking and unlocking system of the pins with a rotation of only 180 degrees
  • Does not require a torque wrench. The limit switch determines locking / unlocking
  • Repeatability < 0.005mm
  • Pull down force 7 kN for Plus 5 52 and 8 kN for Plus 5 96
  • Holding force 40 kN for Plus 5 52 and 80 kN for Plus 5 96

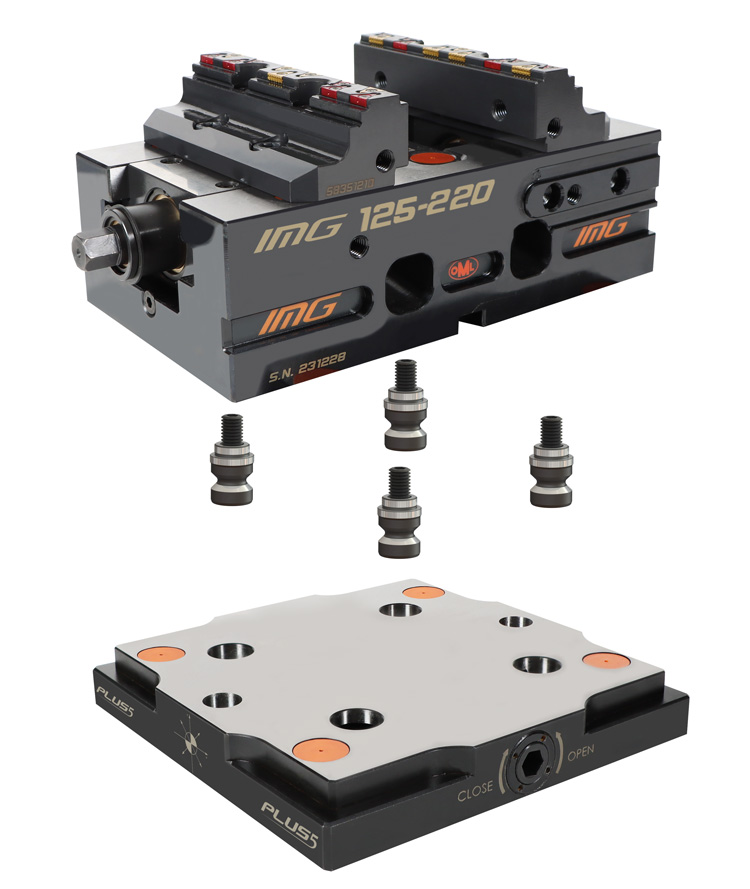

The mechanism designed for locking the pins consists of a cam which is operated by an eccentric pin. The system guarantees high performance in terms of precision and clamping force.
This is due in particular to the fact that the cam locks the 4 pins outwards at the same time.
